Information
For Replacement Of The White And Red Orca Remote Only.

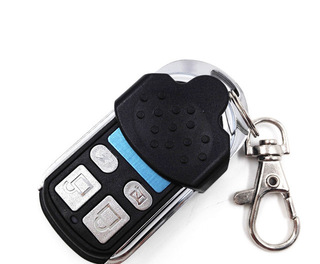

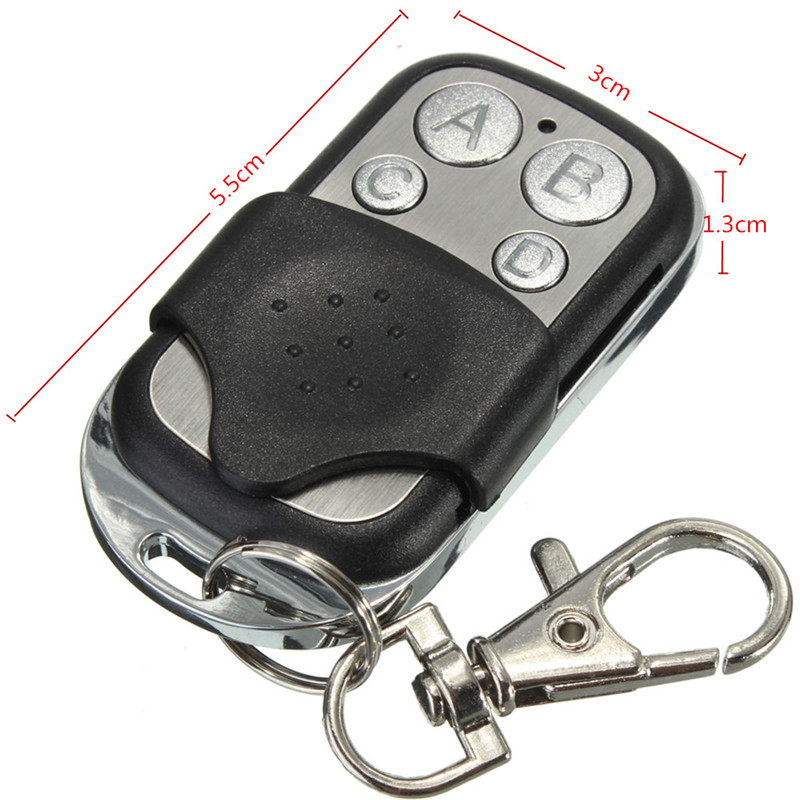

Is Now Replaced By Smaller Silver Key Ring Remote With Sliding Cover In 2nd Photo,works For Motor Head In Picture
Suits Roller units with motor serial numbers starting with ORCA… (2005-2008) and also for Sectional/Tilt units with motor serial numbers starting with ORCA… (2005-2008).
Coding Instructions
Programming the Remote Control (Transmitter):
The supplied Remote Control units can be programmed for any number
of purposes. Although the unit has four buttons, only one is needed to
operate the GarageAce. The same button will open and close the door.
If you have other devices (such as a burglar alarm) that can program a
remote control, use the other buttons for
this purpose.
Go To The Motor In Garage
A. Press K4 or The Code Button Depending Which Model Orca
and release until the LED displays
a dot. Press the preferred button
of Remote Control (Transmitter) then
release and press again. The dot will
flash to confirm the code.
B. Repeat step A for each Remote Control.
To delete all stored codes, press and hold K4 or Code Button for 8 seconds until the dot
turns off. All stored codes have now been deleted.
