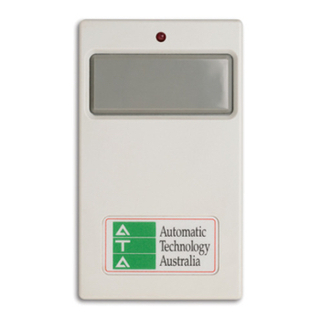

ATA TXA-1 Garage/Gate Remote

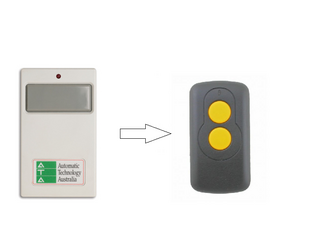

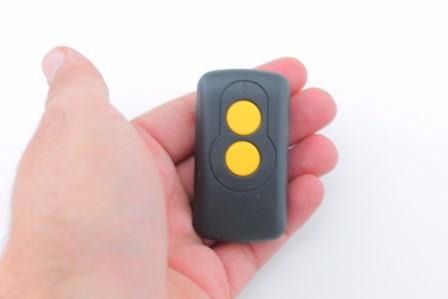

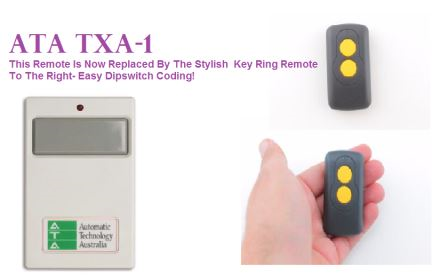

ATA TXA-1 Garage Gate Remotes Control (now replaced by keyring Remote
27 Mhz Has 12 Dipswitches In The Same As The Old One
Easily Coded The Same As The Old Remote
Compatible With Remotes TXA1 TXA2 TXA4 Compatible with Garage/Gate GDO-2 GDO-3 GDO-4 SGO1 SGO2
On Sale! Don't miss out!

Easily Coded The Same As The Old Remote
Compatible  With Remotes TXA1 TXA2 TXA4 Compatible with Garage/Gate GDO-2 GDO-3 GDO-4 SGO1 SGO2

Coding Remote If You Have No Current Remote

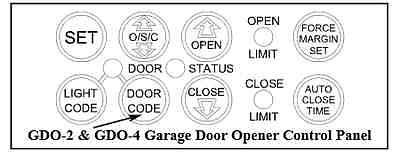

1. Press and hold the blue Door Code button on the opener or SW1 or SW2 on the receiver board.
2. Press the transmitter button you would like to use to control the door for two seconds.
 3. Release and pause for two seconds. Press the same button again for two seconds.
4. Release the Door Code or SW button.
 5. Press the transmitter button to test operation.

Coding If You Still Have A Working Remote In Use

1. Remove your original remotes battery cover to reveal 12 little switches

2. Unscrew the back of the new remote to reveal the same12 switches

3. Change the new remotes switches to match the old remote Switches.

e.g 1 turned 0n in the old remote = 1 turned  on in new remote, 2 0ff - 2 off etc

Close both remotes and test

Please note: After copying the switches, if the remotes doesnot operate the door, please try the switches on the new remote in a reverse Mirror Position (Position of switch 12 on the old remote will be the position of switch 1 on the new remote, position  switch 11 on the old remote will be the position of switch 2 on the new remote etc)
