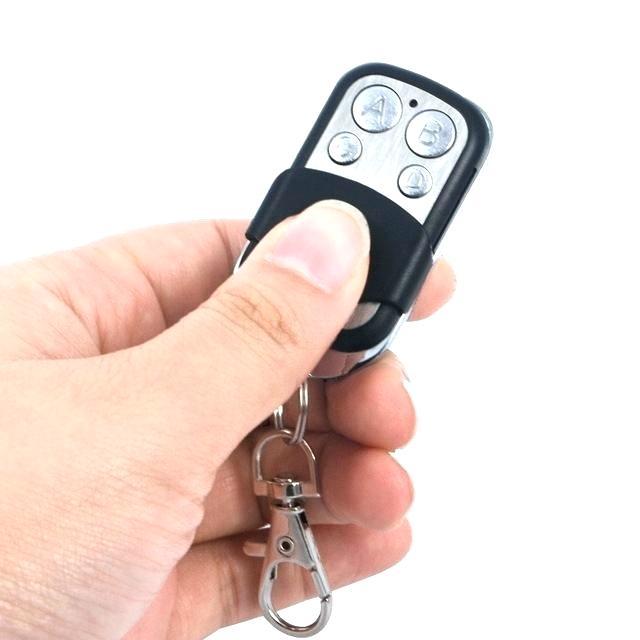

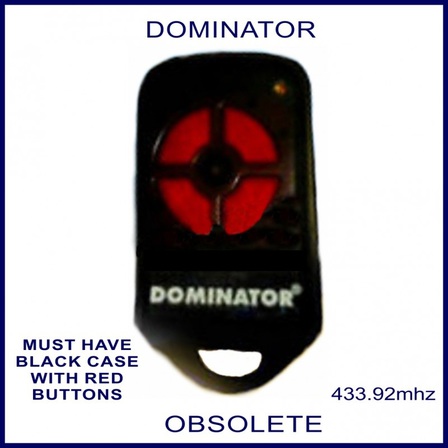

This Remote Is Obsolete And Now Replaced By Remote In 2nd Photo
Works with the following motors:
DOMINATOR MK701-DOMINATOR MK702
Also Works With
Dominator Cobra Openers
Dominator Sectional Door GDO-2V5,GDO-2V6,GDO-2V7,GDO-7,
Roller door GDO-6, GDO-8 GDO-4V3, GDO-4V4, GDO-4V5, GDO-4V6, GDO-2V5, GDO-2V6, GDO-2V7, GDO-7 GDO-7V1,
EasyRoller Roll Up Garage Door Opener GDO-6, GDO-6V1, GDO-8V1, GDO-8V2, GDO-4V3,GDO-4V4. GDO-9v1, GDO-9V1
Programming a Cobra Remote
To programme a Dominator Cobra remote, please follow these instructions,
- Select "Handheld" mode using the "LEARN" button on the unit (display shows "H"
- Within 10 seconds, momentarily press the required button on the transmitter. The decimal point indicator on the display will flash and then stay on.
- Repress the same button again momentarily, the decimal point indicator will flash and then the display will show the memory location number for that function (eg. "H xx"). The location number "xx" will be the first free handheld location number in the memory.
- Your remote will now operate your door.
To delete a Dominator Cobra remote from memory, please follow these instructions, or alternatively download the following PDF file.
- Select "Erase" mode using the "LEARN" button on the unit (display shows "E")
- Press and hold a button on the required transmitter for 2 seconds until the decimal point stays on.
- Release the transmitter button until the decimal point turns off, then press the transmitter button again for 2 seconds; the decimal point will flash and then stay on.
- The display will flash twice (CLR) once the transmitter code has been removed from memory.
- If you do not have the remote that you want to delete from memory, after selecting "Erase" mode:
- Find the memory location of the transmitter to be erased - momentarily press button 1 on a transmitter to display the next used memory location number (eg. "H xx"). Momentarily pressing button 2 will display the previous memory location number (eg. "H xx").
- Once the memory location is located, momentarily pressing button 3 will clear the transmitter function that is memorised in the displayed location number. If no transmitters are stored in memory (memory empty) "H" will be displayed.
