B&D 062170/4333EBD Remote - B&d Garage Door Remotes
B&D 062170/4333EBD

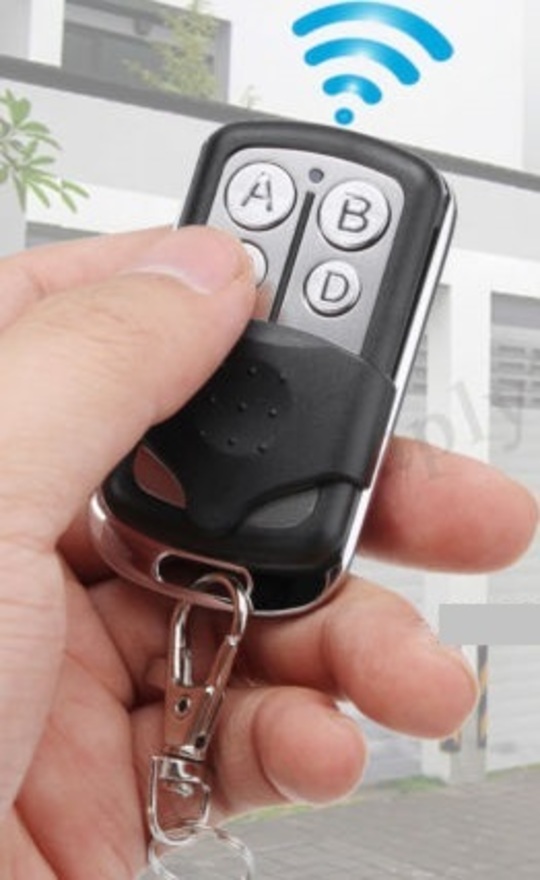

Now Replaced By Our Stylish Key ring Garage Door Remote Control in The 2nd Photo
or four payments of $16.98
with
Learn More
Information

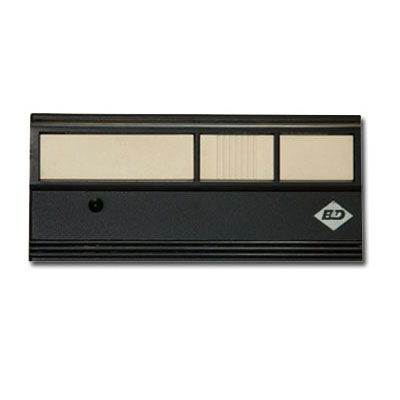

B&D 062170/4333EBD Garage Door Remote
This Remote Is Replaced By Our Very Well Made Stylish Key Ring Remote Control In 2nd Photo.
Works Up To 4 Garage Doors Or Gates. Sliding cover To Save Pushing Buttons By Accident.
Compatibility:
- 062162
- 059116
- 059120
- 062170/433EBD (Remote)
- 062200/4410EBD
- Controll-A-Door 4 (CAD4) - If your original remote has two buttons with ridges/grooves on the left button then your motor is not compatible.
- Controll-A-Door 5 (CAD5)
- Controll-A-Door R (CAD R)
- Controll-A-Door P (CAD P)
- Controll-A-Door Shed Master
- FAM4
- FAM5
- FAM P
- FAM RDO
- EL4
- EL5
- EASYLIFTER
- FIRMAMATIC SDO
- FIRMAMATIC RDO
- FAM R
- EL R
- RDO-1V1
- Not Compatible with other brand motors
- Not Compatible with 27MHz remotes (this will either be on the back or inside your remote)
- Not Compatible if remote has DIP switches (7-12 little switches inside the remote)
- Not Compatible with 062150 remotes (this remote looks similar remotes pictured in our listing, but has ridges/grooves on the left button)
Coding Instructions
How to store the transmitter code: The opener can only operate from transmitters that have been programmed into its receiver. The receiver needs to learn the codes of any transmitter that will be used with the opener. Up to fourteen (14) codes can be stored in the receiver's memory.
a. Go To The Garage Door Motor In Garage And Locate Learn Or Code Set Button
Control a door 4 =square green button on back motor panel
Cad-p diamond=orange square button on back panel
Roller door motors=code set button on side of motor
b. Press the CODE SET button and release. The CODE SET LED will illuminate to indicate the opener is in Code Learn mode. If a valid code is not stored within 15 seconds the opener will exit Code Learn.
c. Press the transmitter button (one of four) that you want to control the door. The CODE SET LED will begin to flash.
d. Press the same transmitter button again. The CODE SET LED will illuminate for one second and then go out.
e. The transmitter is now coded to operate the door - press the button to test. How to erase programmed codes: If the CODE SET button is pressed and held for 6 seconds the CODE SET LED will blink rapidly for one second to indicate that all programmed codes have been erased.
