B&d Tri Tran - B&d
Frequency - 433.47 - 433.92 - 434.37 MHz
Coding - 128 Bit - Rolling Code
Body Type - Key-Ring
Body Type - Key-Ring
Buttons - 4

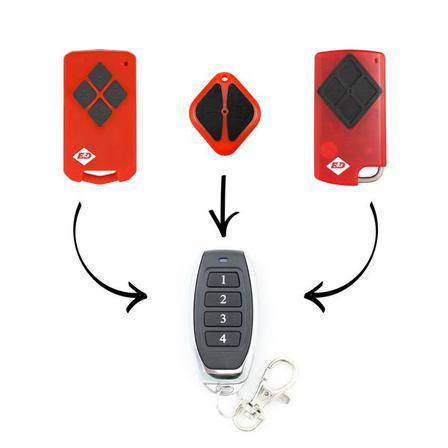

Suits these remotes - B&D TRI-TRAN TB6 - B&D TRI-TRAN TB5 - B&D TRI-TRAN V2 - B&D TRI-TRAN - B&D TRI-TRAN MINI - B&D CONTROL-A-DOOR P - B&D CONTROL-A-DOOR P DIAMOND - B&D CONTROL-A-DOOR P DIAMOND WHISPER QUIET - B&D CONTROL-A-DOOR DIAMOND POWER DRIVE
Compatibility:
- RDO-1V2 (Diamond PD - Power Drive)
- RDO-1V2 FM
- 62730
- 62733
- 70241
- BD2
- BD4
- CAD615
- CAD616
- SDO-1V2 P
- SDO-2V1 PD
- SDO-2V2 PD
- SDO-3V1 CADS (Controll-A-Door S)
- TB2
- TB4
- TB5
- B&D Tri-Tran openers only
- Controll-A-Door P (SDO-2V1 PD)
- Controll-A-Door P Diamond
- Controll-A-Door P Diamond Whisper Quite
- Controll-A-Door Diamond Power Drive (RDO-1V3 ONLY)
- Not compatible with remotes with grey buttons
- Not compatible with Tritran+ remotes
- Not Compatible with B&D motors installed after June 2014
1. Locate the Code Set button on your motor. Some motors
have a see-through plastic cover of the buttons, if so,
please remove this.
2. Press the Code Set button on the motor once and
immediately release. A red light on the motor will
illuminate.
3. Press and release the button on the new remote you wish
to code to the motor for 1-2 secs and the light on the
motor will begin to flash.
4. Press the same button on the new remote and the light
on the motor will stop flashing. The remote is now
programmed and will be able to operate the door.
